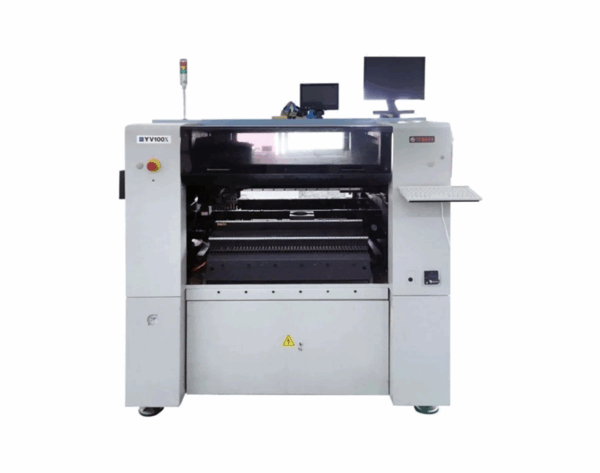

8 Head Automatic Pick & Place Machine
Specification
| Number of feeders: | 70 pieces |
|---|---|
| Feeders: | 8/12/16/24/32 mm, vibration feeders |
| Number of pallets for IC: | up to 12 pieces |
| Number of mounting heads: | 8 pieces |
| Mounting accuracy: | ±60 μm (3σ) |
| Drivers: | servomotors Panasonic + ball screw + X/Y linear guides |
| Video recognition: | synchronous on 8 heads |
| Modes: | manual, semi-automatic, automatic |
| Max axis movement Z: | 20 mm |
| Max dimensions of the PCB: | 650х380 mm |
| Mounted components: | from 0402 to 45х45 mm, LED, QFP, BGA, step outputs ≥ 0,5 mm |
8 Zone Lead Free compatible Reflow Oven
Specification
| Number of heating zones in the oven (top,bottom): | 8/8 |
|---|---|
| Total length of heating zones: | 3200 mm |
| Heating method: | closed circuit circulation of hot air |
| Number of cooling zones: | 2 |
| Cooling method: | forced air flow |
| Max PCB width: | 450 mm |
| PCB transportation height: | 880 ± 20 mm |
| Conveyor speed: | 0 – 2000 mm/min |
| Heating time: | 15-20 min |
| Max heating temperature: | 400ºC |
| Temperature control accuracy: | ±2ºC |
| Average temperature deviation: | ±2ºC |
| Temperature adjustment: | PID controller solid state relays |
| Management: | PC + PLC |
Solder Paste Mixer
Specification
| Speed of rotation around axis of the mixer: | 400 turn/min |
|---|---|
| Rotational speed around axis of the can: | 300 turn/min |
| Capacity: | 2 cans of 1000 g |
| Сans diameter: | 60-70 mm |
| Time setting: | 0.01 s tо 99 h 99 s, minute and second set |
| Display: | LED |
Semi Automatic Screen Printer
Specification
| Min frame dimensions with stencil: | 470×370 mm |
|---|---|
| Max frame dimensions with stencil: | 650х550 mm |
| Max dimensions of the PCB: | 400х300 mm |
| Dimensions table printing: | 500х320 mm |
| Thickness PCB: | 0.2-3 mm |
| Print table stroke: | ± 10 mm (forward / backward, left / right) |
| Accuracy/repeatability printing: | ± 0.02 mm |
| Accuracy/repeatability printing: | 0-100 mm/sec |

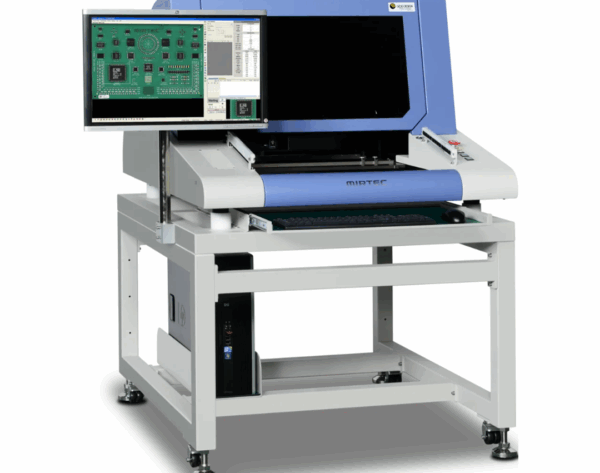

High Resolution Optical Inspection System
Specification
| High Resolution Camera: 13MP camera | |
|---|---|
| 300X Optical zoom with c mount | |
| 1920×1080, 30FPS 13MP Monocular HD Digital |
